Description
Main Features:
- 2.2 KVA
- 208/220/230/240VAC
- Rack and Tower Mountable
- Standard with SNMP Communication Port and 1000 Node Software Suite
- 25 Minutes of back up time at 100% load. 3X more than Lead Acid
- Rack Rails Included
- The Industry’s ONLY 10-Year Warranty
Application
19″ Rack Device, Computer Room, Data Center, Point-of-Sale, Router, Hub, and Network Device, Commercial Facility, Precision Instrument.
Specifications
N1C.L2200G
INPUT
- Voltage (Vac): 208/240±2%
- Frequency (Hz): 50/60±5%
- Power Factor: 0.9
OUTPUT
- Capacity (VA/W): 2200/1980
- Voltage (Vac): 208/2340±2%
- Frequency (Hz): 50/60±2% (battery mode)
- Waveform: Sine wave, THD<3% at linear load
- Transfer time: 0ms
- Overload: 105%~129% for 60 seconds, 130%~150% for 30 seconds, above 150% for 300ms
- Input connection: C19 to L6-20P (all 208/240V models)
- NEMA Outlets: (6) C13, (1) C19 (all 208/240V models)
BATTERY
- Voltage (Vdc): 72
- Run Time at 100%/50% Load (minutes): 25/47
- Charger Current (A) mac: 4A, battery monitoring system included
OTHER:

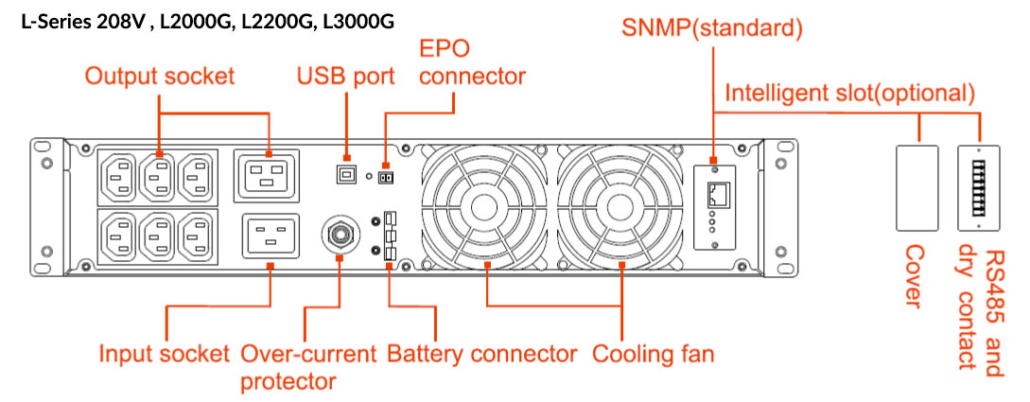

- Communications Interface: USB, EPO and SNMP/Network Card
- Topology: Online Double Conversion
- Alarm: Low battery, abnormal AC input, UPS failure
- Protection: Low Battery, overload, short-circuit, over temperature
- Working Temperature: 32º-140º
- Relative Humidity: 0~95%, no condensation
- Dimensions (HxWxD) (in): 3.4″(2U)x17.2″x27.6″
- Net Weight (lb): 60
